Concrete Mix Design Calculator

Concrete Mix Design – Definition

Concrete mix design is the process of determining the optimal proportions of water, cement, fine aggregate, and coarse aggregate to achieve the desired workability, strength, durability, and performance of concrete. It ensures that the final mixture meets structural requirements while remaining economical and practical for field use.

Background Theory

Concrete strength and performance depend on several key parameters:

1. Water–Cement Ratio (w/c)

This is the most influential factor affecting compressive strength. Lower w/c ratios generally produce stronger and more durable concrete, as described in ACI 211 and classical mix design principles.

2. Aggregate Proportioning

Aggregates typically make up 60–75% of concrete volume. Proper balance between sand and coarse aggregate ensures good workability and compactability.

• Larger maximum aggregate size reduces water demand

• Sand–coarse aggregate ratio influences finishing and pumpability

3. Air Content

Air entrainment (typically 2–6%) improves freeze–thaw durability and affects total volume calculations. More air decreases the required volume of solid materials.

4. Volumetric Method (ACI-Based Approach)

Concrete mix design often uses the absolute volume method, where:

The sum must equal 1 m³ of concrete.

How This Calculator Works

This calculator applies a simplified ACI-style volumetric procedure:

1. Water Content Estimation

Water demand is determined based on slump and maximum aggregate size. Higher slump → more water.

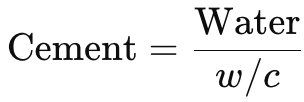

2. Cement Content Calculation

Once water is estimated, cement weight is computed using the selected water–cement ratio.

3. Volume Calculations

Each material’s volume is calculated using its specific gravity:

4. Aggregate Distribution

Remaining volume is divided into sand and coarse aggregate portions using a standard 40–60 split (can be customized).

5. Final Output

The calculator provides:

• Water (kg/m³)

• Cement (kg/m³)

• Sand (kg/m³)

• Coarse Aggregate (kg/m³)

These values form a complete basic concrete mix design suitable for general-purpose structural concrete.
