HVAC Pump Head Calculator

1. Definition

An HVAC pump head calculator determines the total head (in meters or feet) required for a pump to circulate water through a chilled-water, hot-water, or condenser-water loop. Pump head represents the total resistance the pump must overcome, including static elevation differences, pipe friction losses, losses through valves and fittings, and coil or heat-exchanger pressure drops.

2. Background Theory

Pump head is traditionally broken into several components:

• Static Head

The elevation difference between supply and return levels.

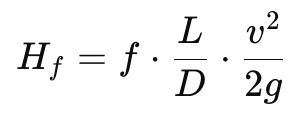

• Pipe Friction Loss

Calculated using Darcy–Weisbach or Hazen–Williams methods:

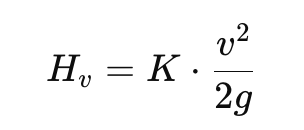

• Fitting and Valve Losses

Elbows, tees, control valves, and strainers add resistance, commonly expressed as equivalent length or loss coefficients:

• Coil / Heat Exchanger Loss

Manufacturers provide coil pressure drops at specific flow rates.

• Total Head

Pump head can be converted to an equivalent pressure:

3. How the Calculator Works

1. The user enters static head, pipe friction loss, fitting/valve loss, coil loss, and any other losses.

2. The calculator sums all contributions to compute total pump head in meters.

3. It converts head to feet of water for imperial pump charts.

4. It converts the head into pressure (kPa and psi) for pump datasheet comparison.

5. The results are displayed together for easy pump selection.

This provides a fast and practical way to size HVAC circulation pumps.
