1. Definition

A refrigeration COP (Coefficient of Performance) calculator estimates how efficiently a cooling system converts electrical power into refrigeration capacity. COP is the ratio of cooling provided (kW of heat removed) to power input (kW to the compressor) and is a key performance metric in chillers, refrigerators, heat pumps, VRF units, and refrigeration plants.

2. Background Theory

• COP of a Refrigeration Cycle

Where:

  • QL​ = cooling load (kW)

  • Wcomp​ = compressor power (kW)

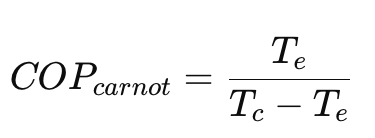

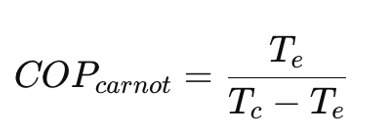

• Carnot (Ideal) COP

For a refrigeration cycle operating between evaporator temperature Te and condenser temperature Tc​ (in Kelvin):

This represents the theoretical upper limit of efficiency.

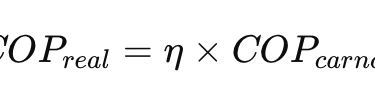

• Realistic COP

Real systems operate at a fraction of Carnot efficiency due to compressor losses, pressure drop, heat exchanger inefficiencies, and refrigerant properties.

where η\etaη is typically 0.4–0.7 for HVAC systems.

How the Calculator Works

  1. The user enters evaporator temperature, condenser temperature, system efficiency, and refrigeration load.

  2. The calculator converts temperatures to Kelvin.

  3. Carnot COP is computed using the ideal thermodynamic relation.

  4. Realistic COP is computed using the selected efficiency factor.

  5. The required compressor power is calculated using Wcomp equation

  6. COP values and compressor power are displayed.

This gives a fast, engineering-level estimate of refrigeration performance.
